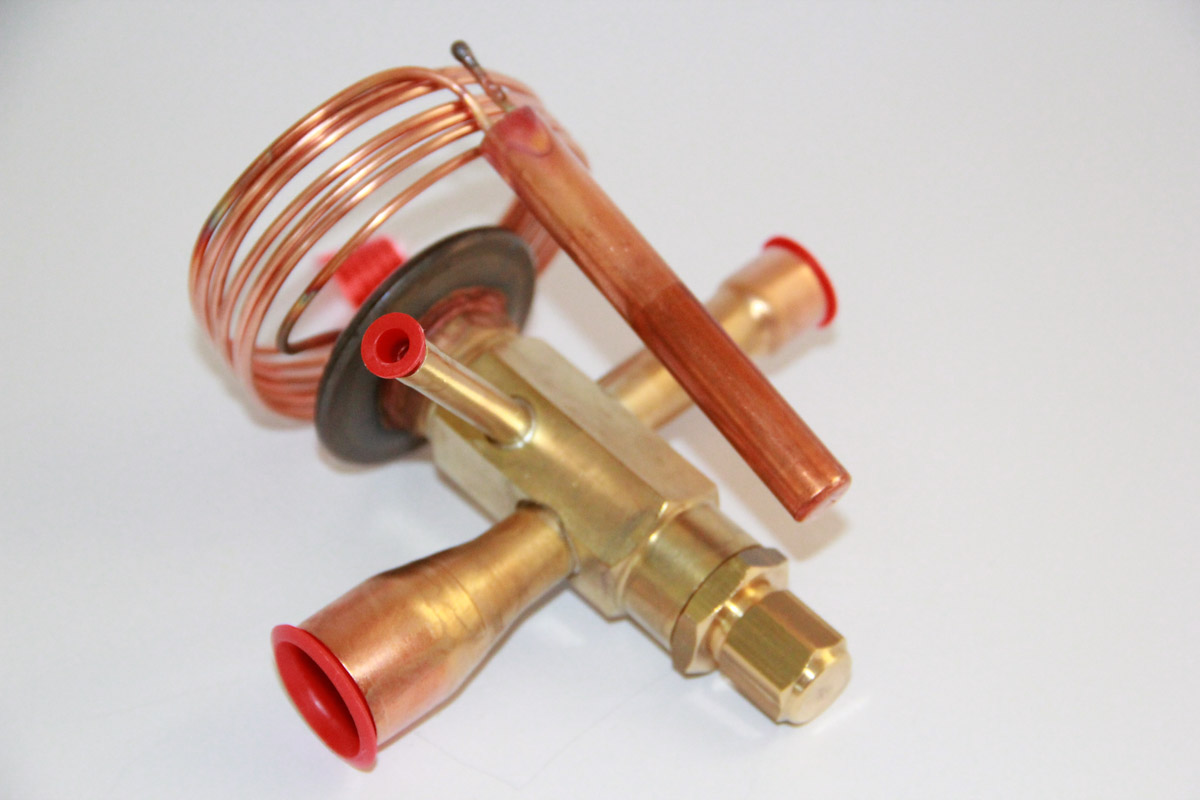

Thermoexpansion valves TX7 with external equalizer

Refrigerant R407C / R454C

With Standard MOP		Nominal** capacity Q kW for R407C	Connection straight through Solder/ODF
TX7-N13		28.9kW	1/2" x 5/8"
TX7-N14		36 kW	5/8" x 7/8"
TX7-N15		44.1 kW	5/8" x 7/8"
TX7-N16		72.7 kW	7/8" x 1-1/8"
TX6-N17		87.3 kW	7/8" x 1-1/8"

Thermoexpansion valves TX7 with external equalizer

Refrigerant R410A / R32* / R452B* / R454B*

With standard-MOP		Nominal** capacity Q kW for R410A	Connection straight through Solder/ODF
TX6-Z12		16 kW	1/2" x 5/8"
TX7-Z13		32.1 kW	1/2" x 5/8"
TX7-Z14		39.9 kW	5/8" x 7/8"
TX7-Z15		48.9 kW	5/8" x 7/8"
TX7-Z16		80.70 kW	7/8" x 1-1/8"
TX7-Z17		99.4kW	7/8" x 1-1/8"
TX7-Z18		130.9 kW	7/8" x 1-1/8"
TX7-Z19		183.4 kW	7/8" x 1-1/8"

* Superheat readjustment required - see operational instruction

**Note: Nominal conditions: Evaporating Temperature +4°C (dew point), Condensing Temperature +38°C (bubble point), Subcooling 1 K.
For selection of other operation conditions, please use the “Controls Navigator” selection tool.
To facilitate valve dimensioning for other than standard conditions, COPELAND/Emerson offers the “Controls Navigator” selection tool which can be downloaded from https://www.copeland.com/en-gb
